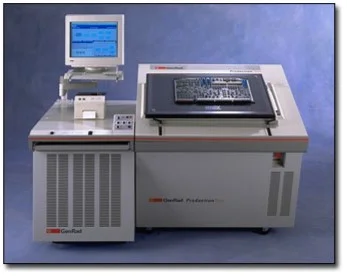

GenRad/Teradyne

Models supported: 2280/81, 2283/84, 2286/87, Test Station series

2280– up to 10 Combo I Cards (maximum 1280 test points)

2281—up to 10 Combo II Cards (maximum 1280 test points)

2283– up to 15 Combo I Cards (maximum 1920 test points)

2284– up to 15 Combo II cards (maximum 1920 test points)

2286—up to 30 Combo I cards (maximum 3840 test points)

2287—up to 30 Combo II cards (maximum 3840 test points)

TestStation LH– Pin Options:

Ultra 121—Ultra 121 cards maximum 2048 test points (all real pins 1 to 1 ratio)

Ultra 124—Ultra 124 cards maximum 2048 test points (1 to 4 mux ratio)

Ultra 128—Ultra 128 cards maximum 3840 test points (1 to 8 mux ratio)

Ultra 124L—Ultra 124L cards maximum 4096 test points (1 to 4 mux ratio)

Ultra 128L—Ultra 128L cards maximum 4096 test points (1 to 8 mux ratio)

TestStation LX– pin options:

Ultra 121—Ultra 121 cards maximum 3840 test points (1 to 1 mux ratio)

Ultra 124—Ultra 124 cards maximum 3840 test points (1 to 4 mux ratio)

Ultra 128—Ultra 128 cards maximum 3840 test points (1 to 8 mux ratio)

Ultra 124L—Ultra 124L cards maximum 7680 test points

Ultra 128L—Ultra 128L cards maximum 7680 test points Ultra 128
